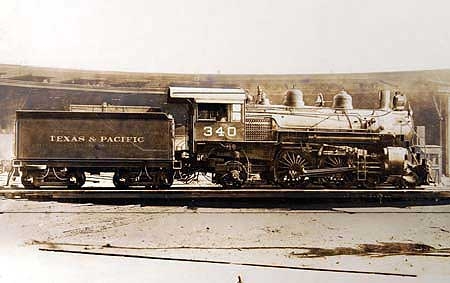

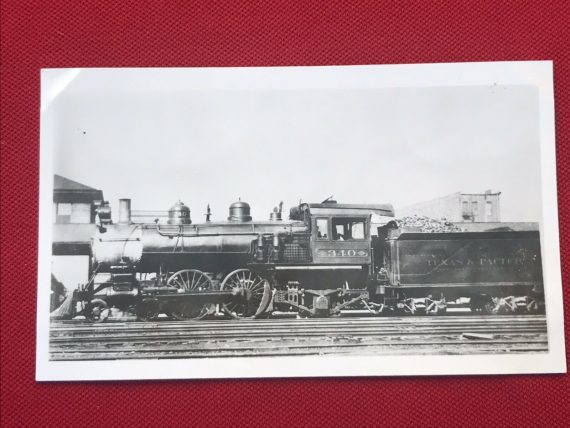

Steam Locomotive #340
Wheel arrangement: 4-4-2
Specifications
![]() |
T&P # | 340 |
|---|---|---|
| Class | E-1 | |
| Builder | T&P Ry | |
| Build Date | 1906 | |
| Wheel Type | 4-4-2 | |
| Cylinders | 22 X 28 | |
| Drivewheel Dia. | 75 in. | |
| Boiler Pressure | 185 psi | |
| Grate Area | 45.00 in² | |
| Weight | 213,986 lbs. | |
| Tractive Force | 28,414 lbs. | |
| Service | Passenger |
Remarks
Rebuilt to E-1s superheated
3 images
