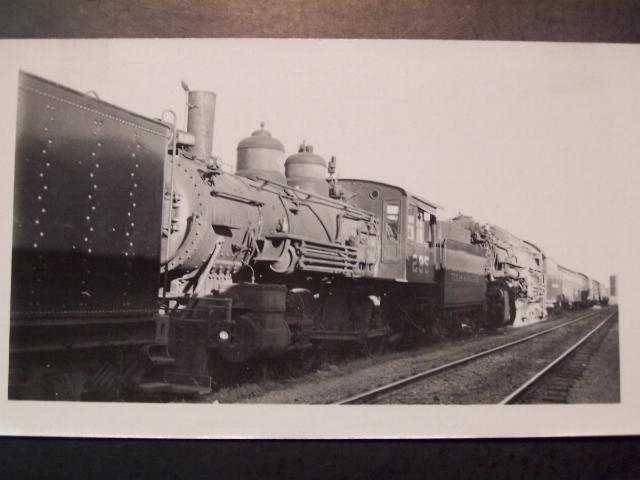

D-9 4-6-0 285
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 285 |
|---|---|---|
| Class | D-9 | |
| Builder | Cooke | |
| Build Date | 1901 | |
| Wheel Type | 4-6-0 | |
| Cylinders | 20 X 26 | |
| Drivewheel Dia. | 63 in. | |
| Boiler Pressure | 200 psi | |
| Grate Area | 36.00 in² | |
| Weight | 158,000 lbs. | |
| Tractive Force | 28,000 lbs. | |
| Service | Freight | |
| Photo Credit | eBay | |
| Category | Steam Engine |
Remarks
to US Army 1 12/6 41 Camp Polk
