M-2 4-8-2 909
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 909 |
|---|---|---|
| Class | M-2 | |
| Builder | Baldwin | |
| Build Date | 6-1928 | |
| Wheel Type | 4-8-2 | |
| Cylinders | 27 X 30 | |
| Drivewheel Dia. | 73 in. | |
| Boiler Pressure | 225 psi | |
| Grate Area | 80.30 in² | |
| Weight | 361,400 lbs. | |
| Tractive Force | 57,300 lbs. | |
| Service | Passenger | |
| Photo Credit | The Portal to Texas History | |
| Category | Steam Engine |
Description

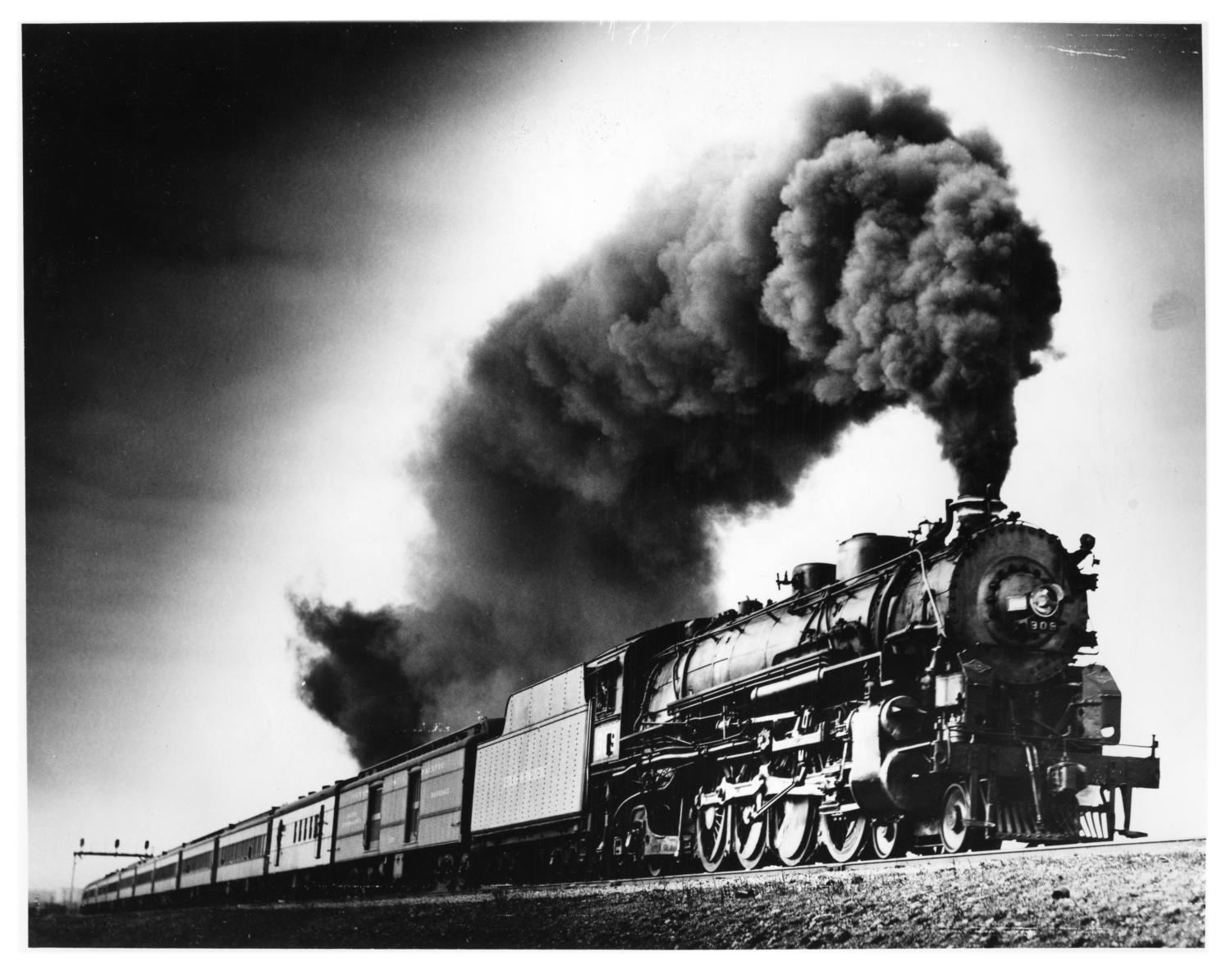

Texas and Pacific's " Sunshine Special" train No. 2, eastbound, headed by Engine No. 909, a 900 class Mountain type 4-8-2 locomotive, rolls through Texas countryside near Forney on a summer day in 1929. The Texas and Pacific Railway had five locomotives of the 900 class which were built by the Baldwin Locomotive Works in 1928 and these went into service in 1929. They were Numbers 905, 906, 907, 908, and 909.
