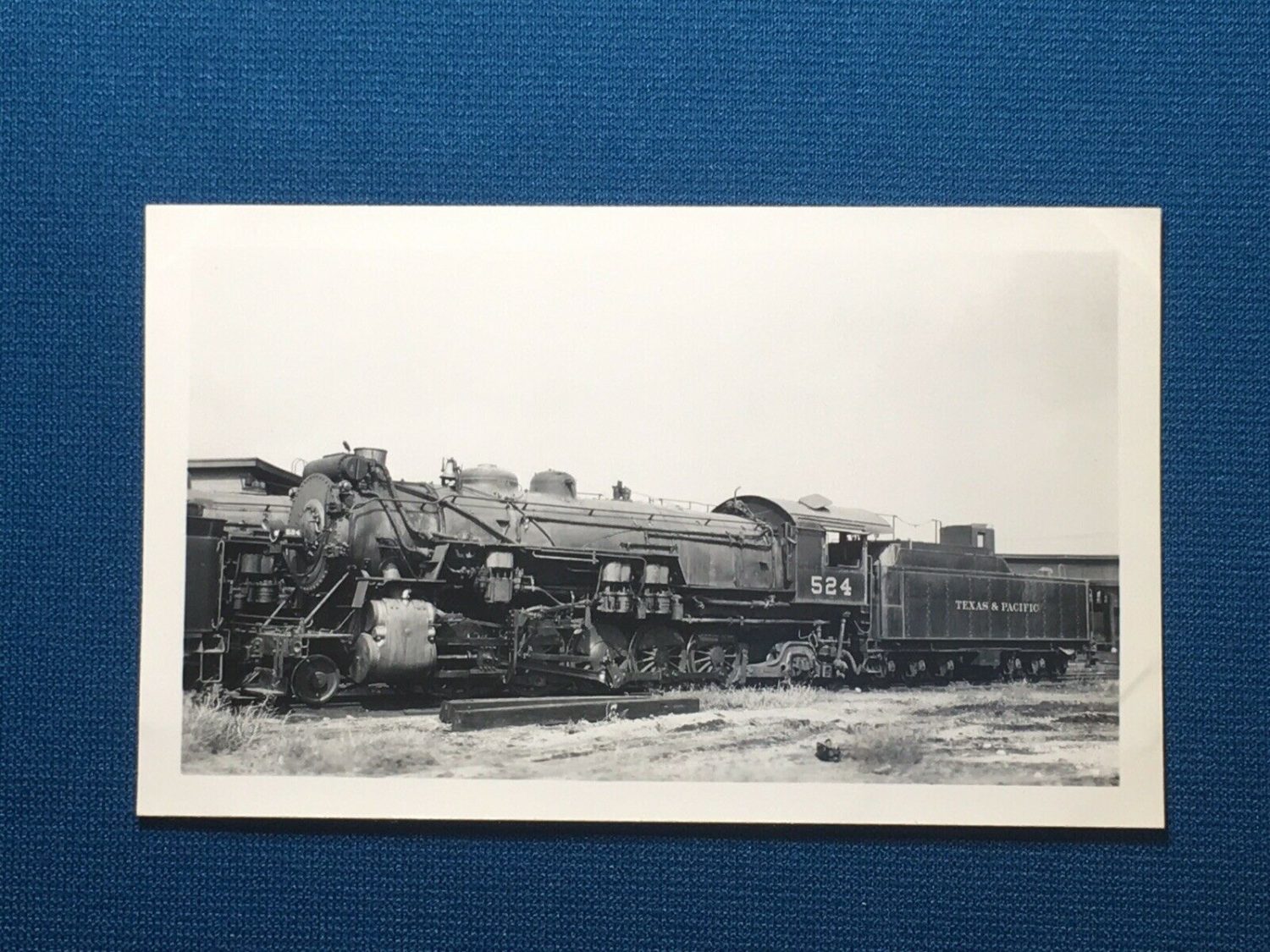

G-1b 2-10-2 #524
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 524 |
|---|---|---|
| Class | G-1b | |
| Builder | Baldwin | |
| Build Date | 4-1919 | |
| Wheel Type | 2-10-2 | |
| Cylinders | 28 X 32 | |
| Drivewheel Dia. | 63 in. | |
| Boiler Pressure | 200 psi | |
| Grate Area | 70.00 in² | |
| Weight | 339,300 lbs. | |
| Tractive Force | 67,700 lbs. | |
| Service | Freight | |
| Photo Credit | ebay | |
| Category | Steam Engine |
