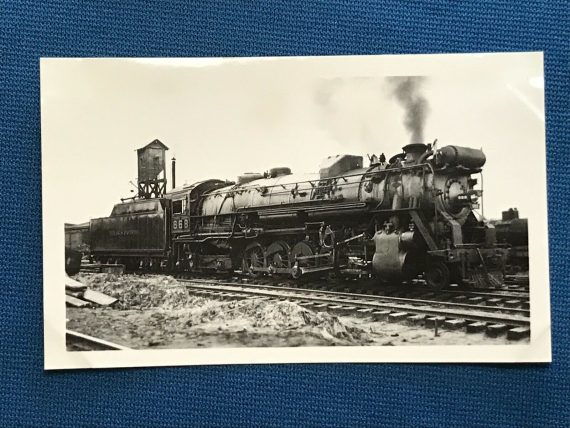

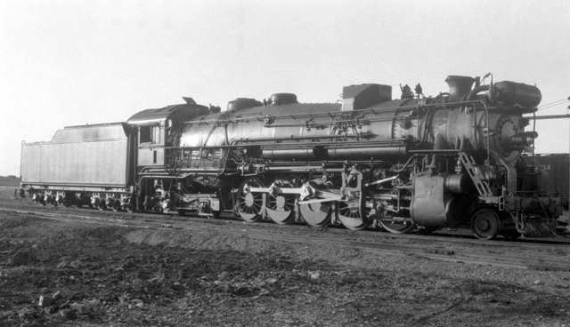

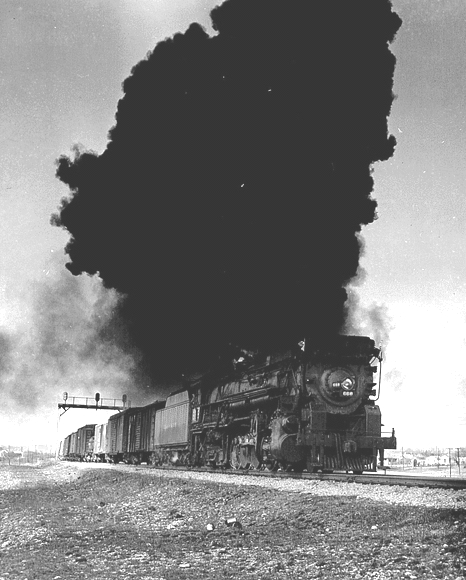

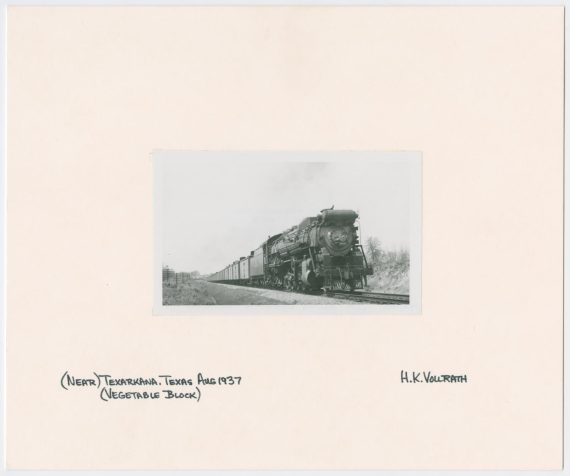

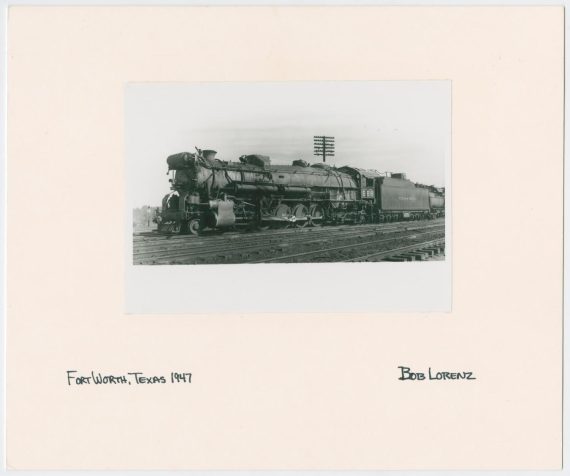

Steam Locomotive #668
Wheel arrangement: 2-10-4
Specifications
 |
T&P # | 668 |
|---|---|---|
| Class | I-1d | |
| Builder | Lima | |
| Build Date | 1929 | |
| Wheel Type | 2-10-4 | |
| Cylinders | 29 X 32 | |
| Drivewheel Dia. | 63 in. | |
| Boiler Pressure | 255 psi | |
| Grate Area | 100.00 in² | |
| Weight | 457,000 lbs. | |
| Tractive Force | 84,600 lbs. | |
| Service | Freight |
6 images
