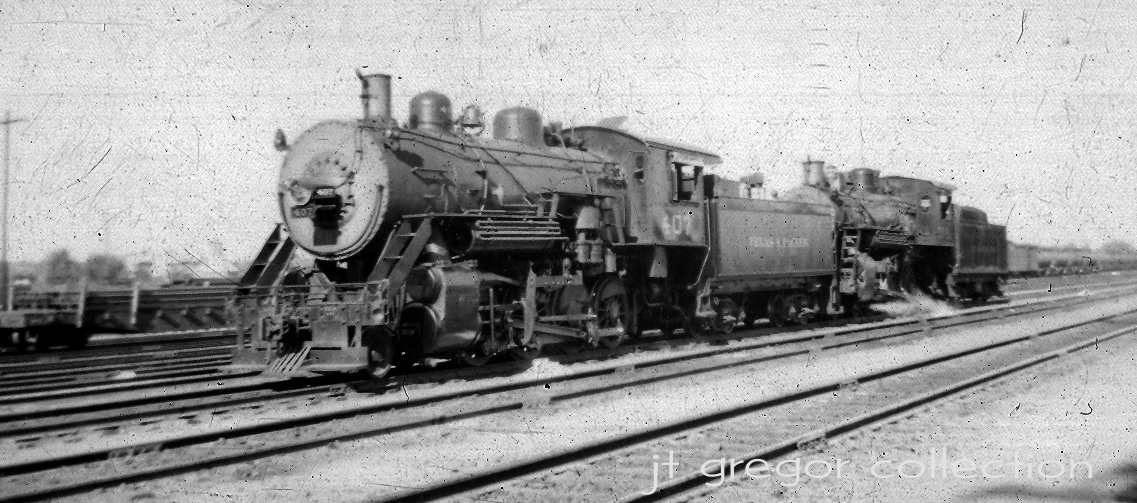

F-1 2-8-0 407
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 407 |
|---|---|---|
| Class | F-1 | |
| Builder | Baldwin | |
| Build Date | 7-1912 | |
| Wheel Type | 2-8-0 | |
| Cylinders | 24 X 30 | |
| Drivewheel Dia. | 57 in. | |
| Boiler Pressure | 180 psi | |
| Grate Area | 49.50 in² | |
| Weight | 210,800 lbs. | |
| Tractive Force | 46,383 lbs. | |
| Service | Freight | |
| Photo Credit | Dave Mock, Jr. | |
| Category | Steam Engine | |
| Contact | mailto://[email protected] |
Remarks
To GH. 407, Ery 407
Description
JT Gregor Collection
