T&P Train #810
Click image to enlarge. Click again in the lightbox to view at 100%. · View at Portal of Texas History (zoom & download)
Specifications
 |
T&P # | 810 |
|---|---|---|
| Class | H-2 | |
| Builder | Baldwin | |
| Build Date | 7-1919 | |
| Wheel Type | 2-8-2 | |
| Cylinders | 26 X 30 | |
| Drivewheel Dia. | 63 in. | |
| Boiler Pressure | 200 psi | |
| Grate Area | 66.70 in² | |
| Weight | 292,000 lbs. | |
| Tractive Force | 54,700 lbs. | |
| Service | Freight | |
| Photo Credit | The Grace Museum - The Portal to Texas History | |
| Category | Steam Engine |
Remarks
To L.E. 20
Description

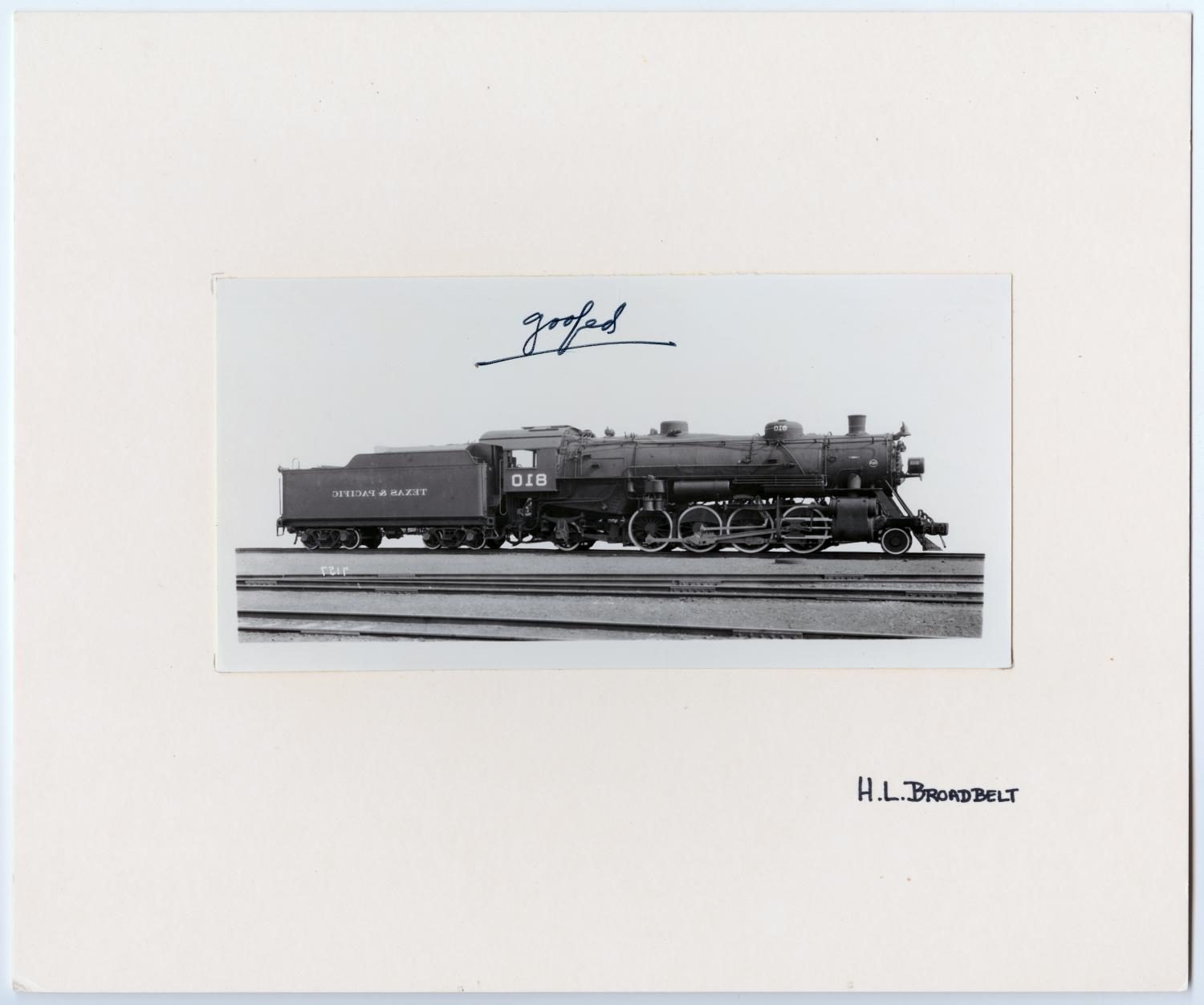

Photograph of T&P train #810. The background has been dropped out and the image is backwards. Written on the image is "goofed," and below the image is "H. L. Broadbelt."
Broadbelt, H. L. [T&P Train #810], photograph, Date Unknown; (https://texashistory.unt.edu/ark:/67531/metapth860260/: accessed March 5, 2020), University of North Texas Libraries, The Portal to Texas History, https://texashistory.unt.edu; crediting The Grace Museum.
