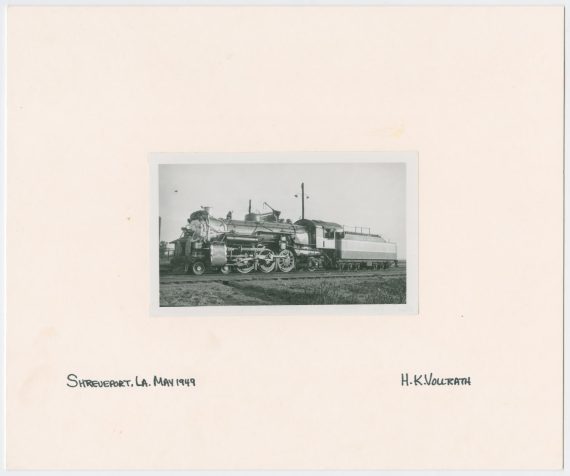

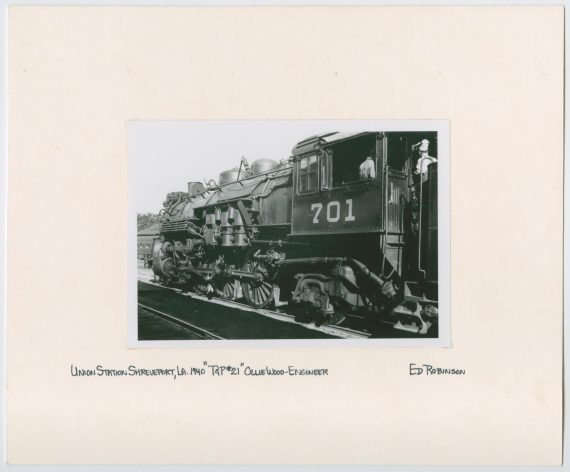

Steam Locomotive #701
Wheel arrangement: 4-6-2
Specifications
 |
T&P # | 701 |
|---|---|---|
| Class | P-1 | |
| Builder | Baldwin | |
| Build Date | 4-1919 | |
| Wheel Type | 4-6-2 | |
| Cylinders | 26 X 28 | |
| Drivewheel Dia. | 73 in. | |
| Boiler Pressure | 200 psi | |
| Grate Area | 59.60 in² | |
| Weight | 275,080 lbs. | |
| Tractive Force | 44,200 lbs. | |
| Service | Passenger |
Remarks
To L.E. 4 - Rebuilt in 1938 with roller bearings and classed P-1r
