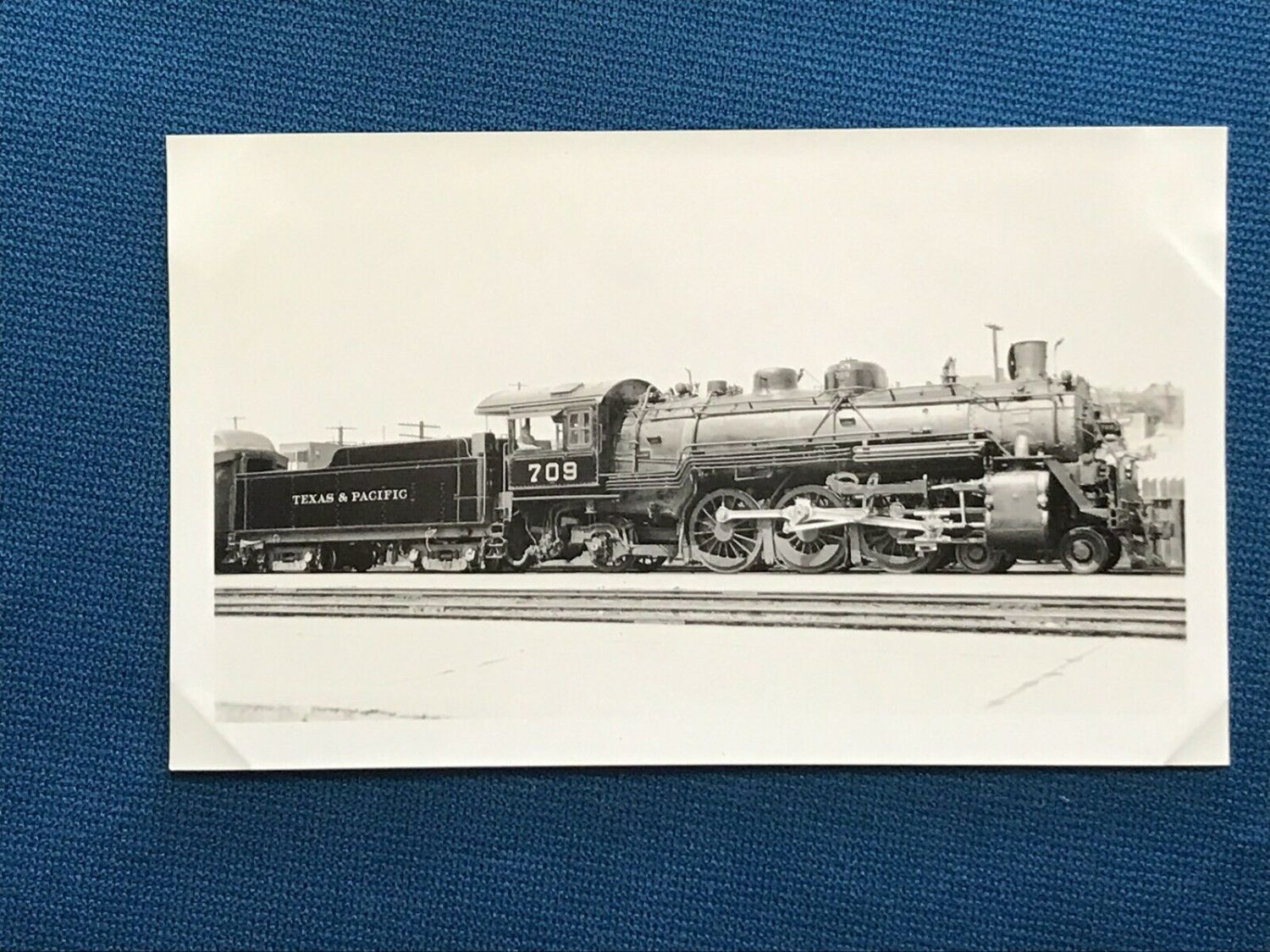

P-1a 4-6-2 #709
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 709 |
|---|---|---|
| Class | P-1a | |
| Builder | A-Brooks | |
| Build Date | 1919 | |
| Wheel Type | 4-6-2 | |
| Cylinders | 26 X 28 | |
| Drivewheel Dia. | 73 in. | |
| Boiler Pressure | 200 psi | |
| Grate Area | 59.60 in² | |
| Weight | 281,000 lbs. | |
| Tractive Force | 44,200 lbs. | |
| Service | Passenger | |
| Photo Credit | ebay | |
| Category | Steam Engine |
