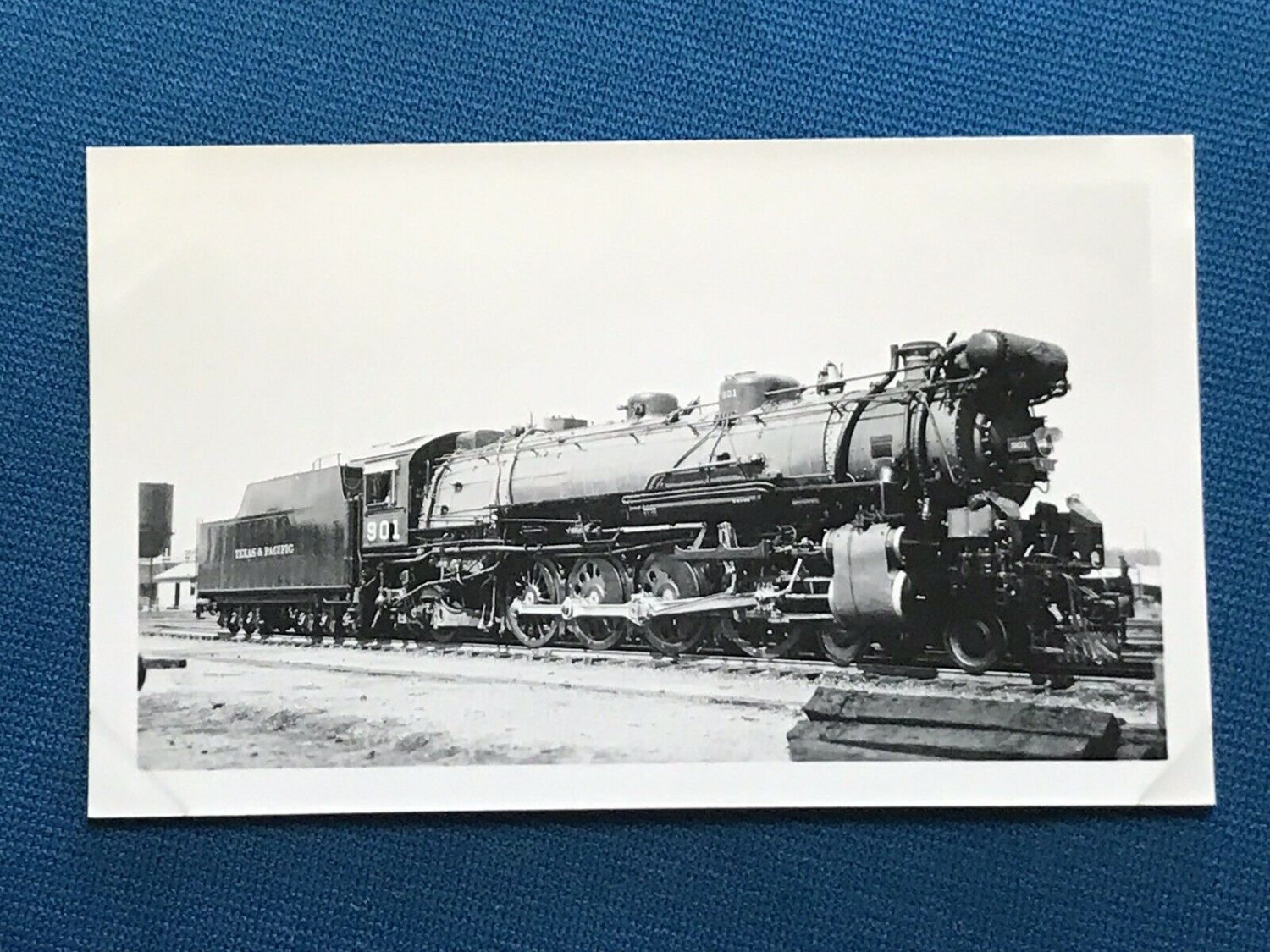

M-1 4-8-2 #901
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 901 |
|---|---|---|
| Class | M-1 | |
| Builder | A-Schenectady | |
| Build Date | 11-1925 | |
| Wheel Type | 4-8-2 | |
| Cylinders | 27 X 30 | |
| Drivewheel Dia. | 73 in. | |
| Boiler Pressure | 225 psi | |
| Grate Area | 80.30 in² | |
| Weight | 360,500 lbs. | |
| Tractive Force | 57,300 lbs. | |
| Service | Passenger | |
| Photo Credit | ebay | |
| Category | Steam Engine |
