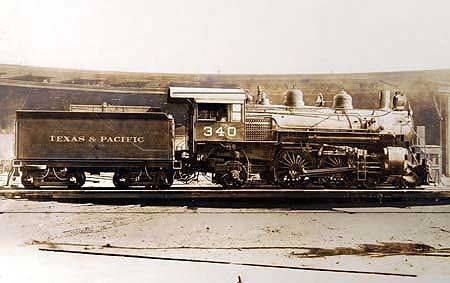

E-1 442 340
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 340 |
|---|---|---|
| Class | E-1 | |
| Builder | T&P Ry | |
| Build Date | 1906 | |
| Wheel Type | 4-4-2 | |
| Cylinders | 22 X 28 | |
| Drivewheel Dia. | 75 in. | |
| Boiler Pressure | 185 psi | |
| Grate Area | 45.00 in² | |
| Weight | 213,986 lbs. | |
| Tractive Force | 28,414 lbs. | |
| Service | Passenger | |
| Photo Credit | Toltec Images | |
| Category | Steam Engine |
Remarks
Rebuilt to E-1s superheated
