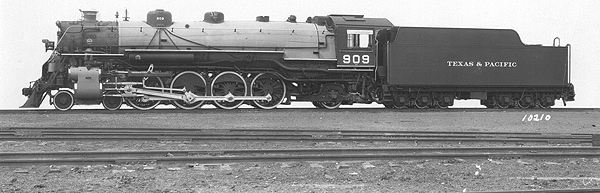

4-8-2 909
Click image to enlarge. Click again in the lightbox to view at 100%.
Specifications
 |
T&P # | 909 |
|---|---|---|
| Class | M-2 | |
| Builder | Baldwin | |
| Build Date | 6-1928 | |
| Wheel Type | 4-8-2 | |
| Cylinders | 27 X 30 | |
| Drivewheel Dia. | 73 in. | |
| Boiler Pressure | 225 psi | |
| Grate Area | 80.30 in² | |
| Weight | 361,400 lbs. | |
| Tractive Force | 57,300 lbs. | |
| Service | Passenger | |
| Photo Credit | Builders Photo<BR>Ted Sorrells Collection | |
| Category | Steam Engine | |
