T&P P-1 #700

Description

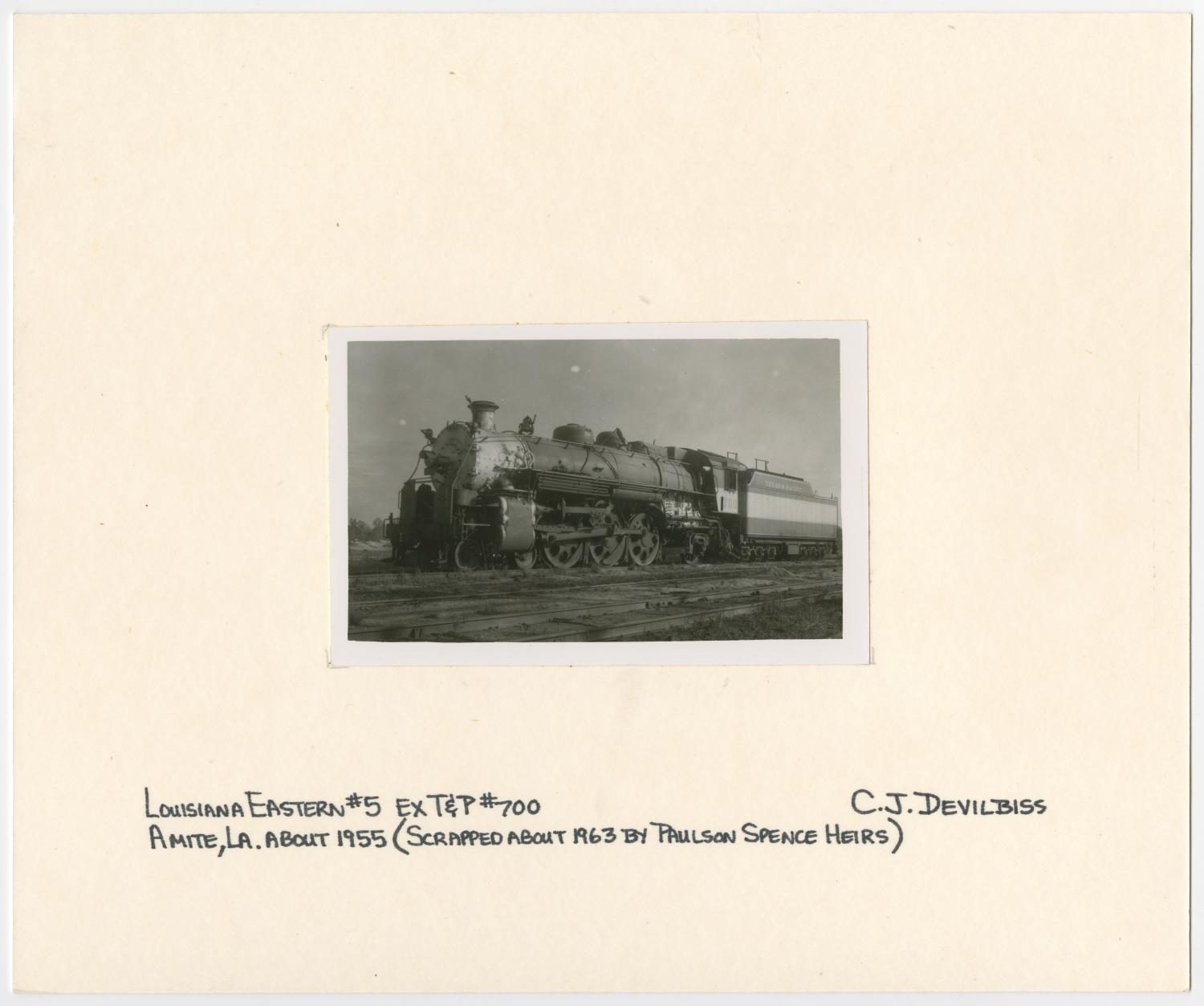

Photograph of a train engine connected to at least one car that has "Texas & Pacific" written across the top. Handwritten text below the image says, "Louisiana Eastern #5 ex T&P #700. Amite, La. about 1955 (Scrapped about 1963 by Paulson Spence Heirs)."

Devilbiss, C. J. [Texas and Pacific Train #700], photograph, 1955~; (https://texashistory.unt.edu/ark:/67531/metapth822684/: accessed March 5, 2020), University of North Texas Libraries, The Portal to Texas History, https://texashistory.unt.edu; crediting The Grace Museum.

Specifications

  •   Builder Baldwin
  •   Build Date 1919
  •   Wheel Type 4-6-2
  •   Cylinders 26 X 28
  •   Drivewheel Diameter 73 in.
  •   Boiler Pressure 200 psi
  •   Grate Area 59.60 in²
  •   Weight 275,080 lbs.
  •   Tractive Force 44,200 lbs.
  •   Photo Credit The Grace Museum - The Portal to Texas History
